Custom 4-1/4" Short Strat Tremolo Arm, DG Black Strat, Short Strat Whammy Bar
一口价: USD 22.0
剩余时间:
卖家:strat-cat(2747) 好评率:100.0%
付款方式:PayPal
运输地区:Worldwide
物品所在地:Stockton, California

Custom Fabricated Stainless Steel Tremolo Arms For The Fender® Stratocaster®

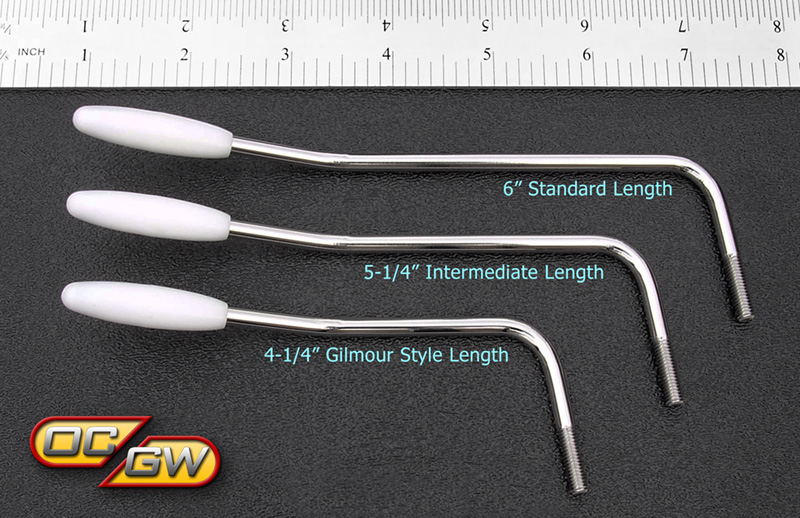

The Three Length Options Compared To Each Other

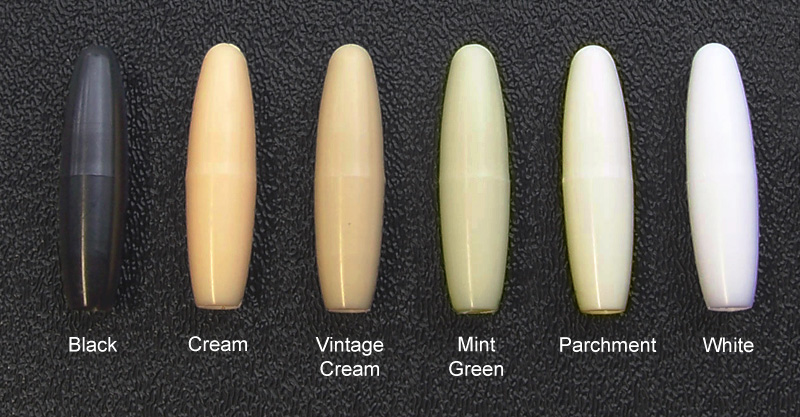

The Six Plastic Tip Color Options

Our tremolo arms are fabricated for the Fender® Stratocaster® from Stainless Steel and are threaded at the attachment end in UNF 10-32 or metric 5mm (M5 x 0.8).

Our tremolo arms are designed for a Fender® Strat® that has its bridge setup as free-floating. The free-floating bridge setup allows the underside back edge of the bridge top plate to be lifted up off the body by approximately 1/8", this is how all Strat's® come setup from Fender®.  The free-floating bridge setup allows you to increase or decrease string tension thus raising or lowing pitch by lifting up or pressing down on the tremolo arm, this setup is what allows for the best vibrato effect. Our tremolo arms normal tip-to-pickguard distance is based on this free-floating bridge setup, if you do not currently have your bridge setup as free-floating then you will want to set it up as such before installing one of these tremolo arms to ensure optimum tremolo arm tip-to-pickguard distance. If you chose to not setup your bridge as free-floating then your tremolo arms tip-to-pickguard distance will be greater (higher).

Important Points of Reference of Tremolo Arm Lengths and Styles:

  • The typical OEM Fender® Strat® tremolo arm is approximately 6" in length, some models may vary +/- 1/2".
  • David Gilmour's tremolo arm is published in Phil Taylor's book "The Black Strat" as custom shortened to 4-1/4" in length.
  • The tremolo arms offered here WILL NOT fit the American Deluxe, Elite or Professional Strat®, they accept a pop-in tremolo arm.
Selecting The Correct "ATTACHMENT THREADING" For Your Fender® Strat®:
  • American Strat® 10-32:  These tremolo arms will fit the American Standard Strat with the 2-point synchronized tremolo bridge, American Special Strat®, American Vintage Re-Issue Strat® or any American Fender® Strat® tremolo bridge that accepts a 10-32 threaded tremolo arm.

  • Metric 5mm (M5 x 0.8):  These tremolo arms will fit the Mexican, Japanese, and some Squire Strat's® that accept a metric 5mm threaded tremolo arm. Some Squier® Strat's® accept a metric 6mm threaded tremolo arm (M6 x 1.0) which we do not fabricate or offer for sale.  NOTE:  If you have one of the half-thickness, lightweight/cast zinc tremolo blocks on your import Strat® bridge then these custom tremolo arms offered here will not have the proper bend angle for that model of bridge, those bridges accept the tremolo arm into the tremolo block at 10 degrees angle different than the typical Strat® tremolo bridge that these tremolo arms are designed for.  You can confirm this by the removal of the back plate on your Strat® and looking at the bottom of your tremolo block where the tremolo tension springs clip on, the tremolo block will only be 1/4" thick and that is not what you want to see, so DO NOT purchase one of these tremolo arms for that bridge.

If you are unsure as to the correct tremolo arm attachment threading for your Strat® we may be able to assist you or you may need to contact the manufacturer to determine the correct tremolo arm attachment threading, but ultimately it is your responsibility to know which is the correct tremolo arm for your guitar and place your order accordingly. Ask all questions before placing your order.

Tremolo Arm Option Selections

Two Different Attachment Threading Options:

  • American Strat® - UNF 10-32 threading
  • Import Strat® - Metric 5mm (M5 x 0.8) threading - Mexican, Japanese and some Squier® Strat's®

Right or Left Handed Versions:

  • Right handed
  • Left handed

Three Different Length Options:

  • 4-1/4" DG Black Strat® style shortened length (Featured Tremolo Arm)
  • 5-1/4" Intermediate length
  • 6" Standard length

Six Plastic Tip Color Options:

  • White
  • Parchment
  • Mint Green
  • Cream
  • Vintage Cream (it's the closest similar color to Fenders "Aged White". It's not an exact match, but is the closest)
  • Black

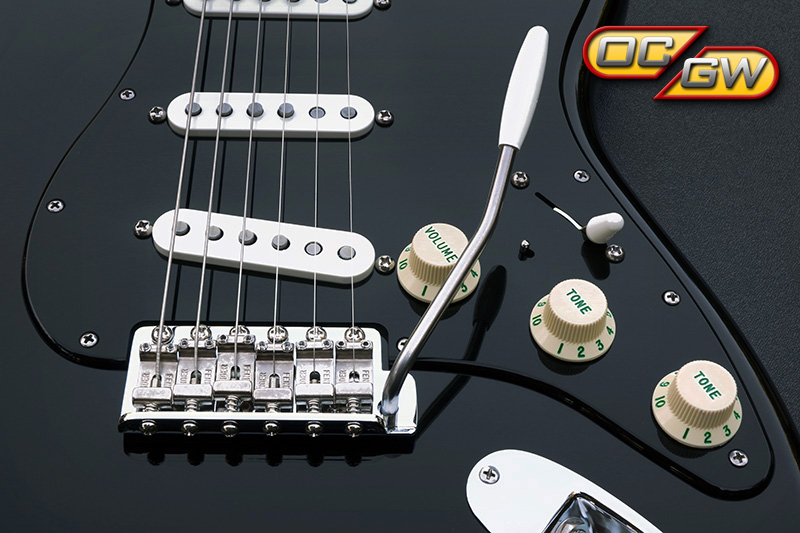

Below is OverDrive Custom Guitar Works' Black Strat® replica project with our 4-1/4" Shortened Stainless Steel Tremolo Arm along with our Custom Black Strat® Fully Loaded Complete Pickguard Assembly.

For complete project details you can view it on the Black Strat® Project Page at OverDrive Custom Guitar Works.
